Precision-machined from certified alloy steel with full dimensional verification against CMM-captured OEM reference specifications, this LMV 341 Interconecting Shaft Assembly SS316 Material is manufactured to exacting tolerances essential for reliable high-speed rotordynamic performance in Sundyne integrally geared centrifugal pumps. Each shaft assembly undergoes a comprehensive quality assurance protocol including ultrasonic testing for internal discontinuities, magnetic particle inspection for surface defects, and precision dimensional layout of all bearing journals, seal diameters, and gear mounting surfaces—which are finish-ground to Ra 0.4 μm or better. With over 800 shaft assemblies manufactured and supplied to pump operators worldwide since 2011, our replacement shaft program provides documented, traceable components that meet the reliability expectations of rotating equipment engineers in API-regulated process facilities.
Technical Specifications
ParameterSpecification
Product TypeShaft
Compatible Pump SeriesLMV 341
Material316 SS
Surface Finish (Journals/Seals)Ra 0.4 μm or Better
NDT MethodsUltrasonic Testing (UT), Magnetic Particle Inspection (MPI)
Quality CertificationEN 10204 Type 3.1, Dimensional Inspection Report
Heat TreatmentPer Material Specification, Hardness Verified
PackagingVCI Anti-Corrosion Wrap, Export-Grade Protective Case
Key Advantages
Precision-Ground Bearing Journals: All bearing and seal mounting surfaces are finish-ground to Ra 0.4 μm surface finish and verified by profilometer measurement, ensuring proper bearing fit and mechanical seal performance under high-speed operating conditions.
Comprehensive NDT Program: Every shaft undergoes ultrasonic testing for internal discontinuities and magnetic particle inspection for surface defects, performed by ASNT Level II certified technicians with documented inspection reports included in the shipment package.
Full Dimensional Verification: Critical dimensions—including bearing journal diameters, seal mounting diameters, gear registry surfaces, and overall length—are verified against CMM-captured OEM reference measurements for the specific pump model before release.
Certified Material Integrity: EN 10204 Type 3.1 material test certificates documenting chemical composition, mechanical properties, and heat treatment parameters are provided, with NACE MR0175/ISO 15156 compliant material options available for sour service applications.
Balanced Assembly Option: Shaft assemblies can be supplied as balanced rotating elements with ISO 1940 G1.0 certification upon request, reducing site assembly time and ensuring proper rotor dynamic behavior from initial commissioning.
Frequently Asked Questions
Q: How do you ensure this replacement shaft is dimensionally identical to the original?
A: Each shaft is machined from certified alloy steel and all critical dimensions—bearing journals, seal diameters, gear registry surfaces, and overall length—are verified against our CMM-captured OEM reference database for the specific pump model. Material certificates, dimensional reports, and NDT documentation are provided with every shipment.
Q: What NDT inspections are performed on each shaft?
A: Ultrasonic testing (UT) for internal discontinuities and magnetic particle inspection (MPI) for surface defects are performed on every shaft by ASNT Level II certified technicians. Inspection reports are included in the documentation package supporting plant mechanical integrity program requirements.
Q: Can shafts be supplied as balanced assemblies?
A: Yes. Shaft assemblies can be supplied as complete balanced rotating elements with ISO 1940 G1.0 dynamic balancing certification upon request, reducing site assembly time and ensuring proper rotor dynamic behavior from initial commissioning.
Product Tags:
|
|

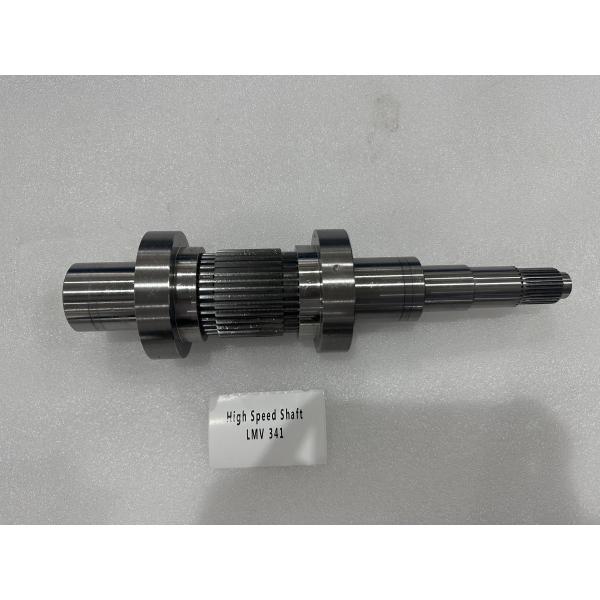

LMV 341 Interconecting Shaft Assembly SS316 Material Images
|
